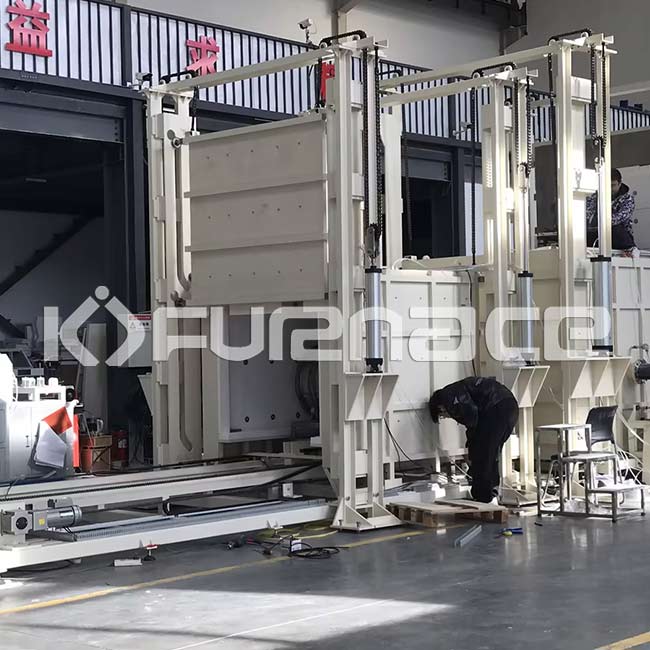

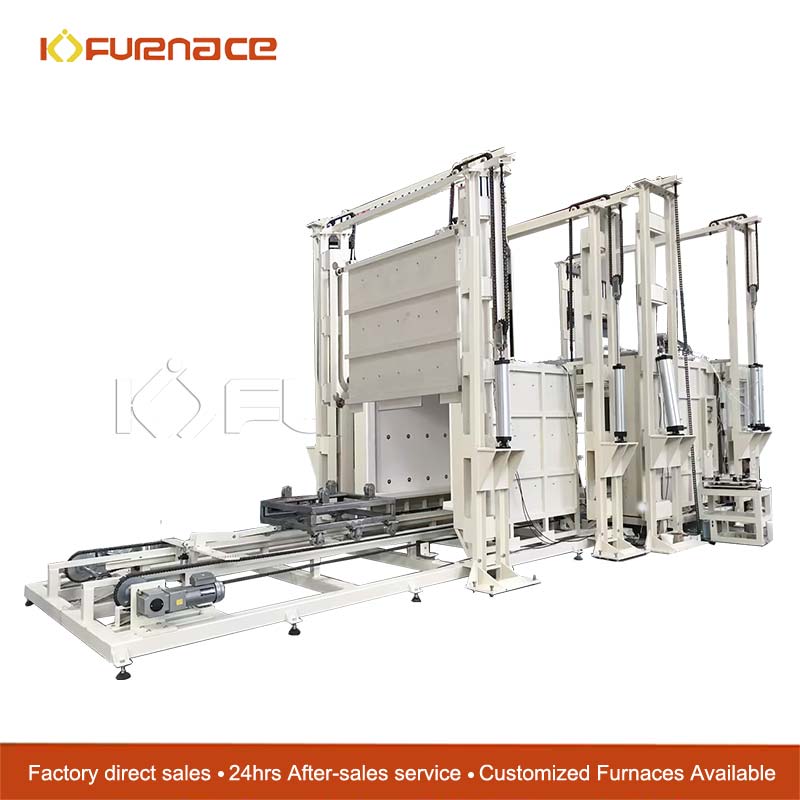

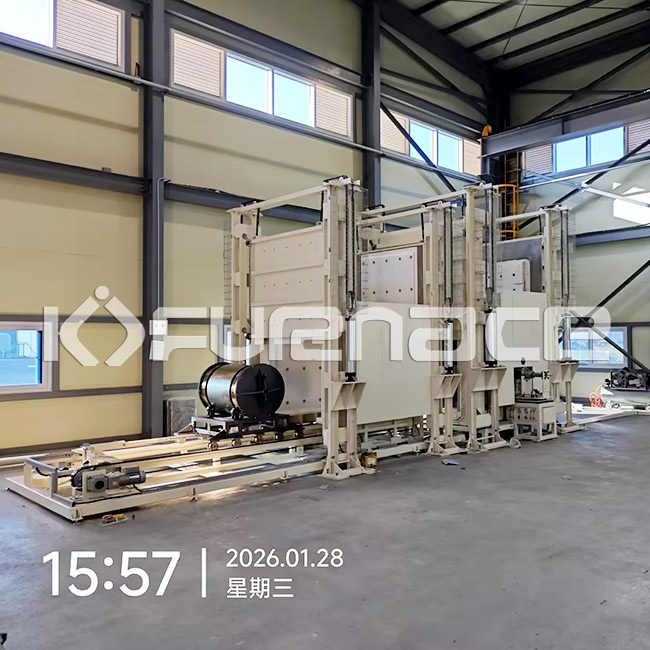

KJ-A1000-2160CS Trolley Furnace

Description：

Trolley furnaces serve as a core piece of equipment across diverse sectors, including sintering, heat treatment, electronics manufacturing, nanomaterial synthesis, and ceramic production.

Introduction:
Trolley furnaces are a staple of modern heat treatment workflows, featuring a furnace lining crafted from premium imported alumina polycrystalline fiber via vacuum adsorption technology—this advanced material cuts energy consumption by up to 50%. High-temperature silicone rubber ensures airtight sealing for both the furnace door and top, with the door integrated with a dedicated water-cooling system for thermal stability. The furnace body is configured with gas inlet, outlet, and vacuum ports, enabling compatibility with protective gases like hydrogen, argon, and nitrogen, alongside a pre-vacuum function that achieves a vacuum pressure of 0.1 MPa. Its box-type structure streamlines workpiece loading and unloading, while the simplified operational design obviates the need for intricate procedures or specialized technical personnel, effectively lowering operational complexity and labor costs. Complemented by an intuitive touch screen control interface, operators can effortlessly set key parameters (temperature, duration, atmosphere type) and monitor real-time furnace performance. Select models further support remote monitoring capabilities, enhancing operational convenience and flexibility. As such, these furnaces stand as the preferred experimental and production equipment for research institutions, universities, and industrial enterprises alike.

Applications:
Trolley furnaces are versatile heat treatment solutions deployed extensively across the following domains:
Sintering: Specialized in material sintering, heat treatment, and analytical testing—applicable to magnetic materials, powder metallurgy, rare earth elements, and precious metal sintering processes.
Heat Treatment: Facilitates annealing, tempering, and other thermal processes for metals and alloys under controlled atmospheric conditions; also supports precision annealing and microcrystallization of glass, as well as crystal precision annealing.
Electronics Industry: Critical for electronic component fabrication, semiconductor material preparation, and the curing of electronic packaging materials.
Nanomaterials: The synthesis of nanomaterials demands stringent reaction environments. Trolley furnaces deliver stable atmospheric control and high-precision temperature regulation, creating optimal conditions for nanomaterial synthesis and crystal growth.
Ceramic Materials: Used in sintering electronic ceramics and high-temperature structural ceramics, plus ceramic glaze preparation. By regulating furnace atmosphere, it is possible to modulate interfacial reactions between composite material components, thereby enhancing overall material performance.

Parameters:

Model	KJ-A1000-2160CS
Door Design	Vertical sliding (pneumatic cylinder)
Max. temperature	1000℃
Max working temperature	600℃(continuously)
Heating Rate	0~20℃/min(suggest 0~10C/min)
Thermal Control Accuracy	+/- 1℃
Chamber Size	W1200 H1200L1500mm
Tray size	W1000 H1000L1000mm
Heating Element	Resistance wire (top, left, right)
Thermal Couple	N type temperature control thermocouple + monitor thermocouple
Insulation Material	Alumina fibers
Temperature controller	Independent controller cabinet； 10 inch touch screen； PID automatic control via SCR power control; 16 programs with 30 steps programmable; Over temperature protection and alarm.
Gas system	N₂ or other inert gas injection and air circulating system for temperature maintenance.
Tray system	Rotary drum with open/close door
Cooling zone	Chamber size: W1200 H1200L1500mm With N type monitor thermocouple
Transfer system	With tray transfer system
Safety system	Over temperature and thermocouple break alarm; Equip the system with an automatic stop and emergency alarm in case of operational errors.
Products can be customized according to customer needs.
